Essential Tests for Rubber Batch Release

In the rubber industry, especially for the mixing sectors, consistency is key. Whether you're producing rubber for automotive seals, industrial gaskets, or high-performance tires, the quality of your rubber compound must be impeccable. That's where the rubber batch release process comes into play. This critical step ensures that every batch of mixed rubber meets stringent quality standards before it moves forward in the production process. But what exactly does rubber batch release involve, and what types of quality checks are essential? This article unfolds the most common instruments found in rubber mixing laboratories, the test methods, where rubber mixers are going in the future.

What is Rubber Batch Release?

Rubber batch release is the process of evaluating a batch of mixed rubber compound to confirm that it meets all required specifications. Before a batch is approved for further processing—such as molding, extrusion, or calendaring—it must undergo a series of quality control tests. These tests are vital for ensuring that the material will perform as expected in its final application.

The goal of rubber batch release is to identify and correct any issues early in the production process, reducing the risk of defects in the final product. This not only ensures the performance and durability of the rubber but also helps maintain manufacturing efficiency and minimize waste.

Essential Quality Checks in Rubber Batch Release

To achieve consistent and reliable results, rubber batch release relies on precision testing equipment that adheres to recognized standards. Here are the key quality checks that are typically performed:

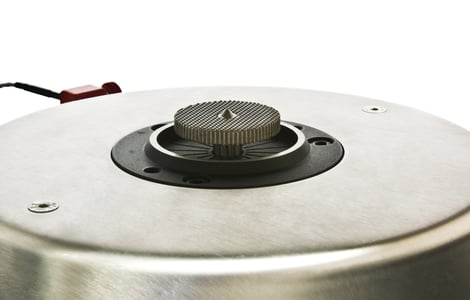

Mooney Viscosity (ASTM D1646) Purpose: Mooney viscosity is a very basic measurement that indicates the flow characteristics of the uncured rubber compound. This test is critical for understanding how the material will process. Equipment Required: A Mooney viscometer, such as the MV 3000 from MonTech, is used to measure the torque required to rotate a disk embedded in the rubber at a constant temperature.
Cure Properties (ASTM D5289) Purpose: ASTM D5289 assesses the cure characteristics of the rubber compound, including scorch time, cure rate, and final cure state. Additionally, it gives basic indications of a material’s elasticity. These properties are crucial for determining the optimal curing conditions and ensuring that the rubber will achieve the desired physical properties. Equipment: The most common instrument for this type of test is the Moving Die Rheometer (MDR), such as the [MDR 3000].
Density/Specific Gravity (ASTM D792 or Bulk Density) Purpose: Specific gravity testing ensures the uniformity of the rubber compound by measuring its density relative to water or may be tested via compression. This test helps detect any inconsistencies in the mix, such as variations in filler content. Equipment: There are two types of equipment every mixer should consider, the [DM 3000] densimeter or the [RD 3000] bulk density tester. Whereas the DM focuses on measuring cured buttons via hydrostatic weighing, the RD is perfect for final or masterbatch as curing is not required.
Tensile Strength and Elongation (ASTM D412) Purpose: Tensile testing measures the rubber's strength and elongation at break, key indicators of the material's durability and flexibility. Equipment: A universal testing machine (UTM), or tensiometer, is used to stretch the rubber sample until it breaks, recording the force required and the amount of elongation.

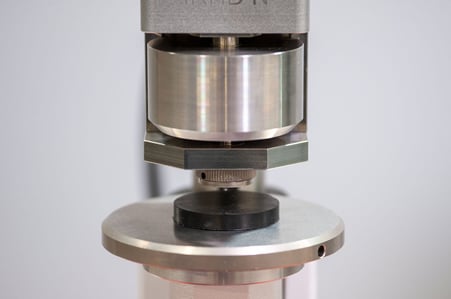

Hardness (ASTM D2240) Purpose: Hardness testing evaluates the resistance of the rubber surface to indentation, providing insight into its rigidity or softness. This is particularly important for applications where the rubber must withstand specific forces or pressures. This is the most basic test on the list. Equipment: A durometer, such as our [HT 3000] would work great. The most common scale is Shore A, but other scales, or Shore ranges may need to be considered by the rubber mixer.

Honorable Mention: Rubber Process Analyzer

Over the last five years, the Rubber Process Analyzer (RPA), has been adopted into the batch release process by many facilities, especially within the Tire industry. The test sensitivity produced by this instrument gives greater insight into the material’s processability, filler-polymer network, molecular characteristics, post-cure properties and much more. Additionally, it is one of the best problem-solving tools available to mixing facilities.

To learn more about how the RPA can be incorporated into your mixing process, learn more here: [Rubber Process Analyzer]

Essential Tests for Batch Release

Rubber batch release is a fundamental step in ensuring the quality and consistency of rubber products. By conducting these essential tests—using precision equipment that complies with ASTM standards—manufacturers can confidently approve batches that meet the highest standards of performance and reliability. Investing in accurate and reliable testing equipment is crucial for maintaining the quality of your rubber compounds and the integrity of your production process.
