Rubber Hardness Testing: Shore or IRHD?

Rubber hardness testing is essential for determining the performance and suitability of rubber materials in various applications. This guide explores the fundamentals of rubber hardness testing, the role of ASTM in standardization, the significance of these tests, and the distinctions between Shore and IRHD methods.

What is Rubber Hardness Testing?

Rubber hardness testing measures a material's resistance to indentation. This property is critical for understanding how rubber materials will behave under mechanical stress and various environmental conditions. The hardness of rubber affects its durability, wear resistance, and flexibility, making it a key factor in applications ranging from automotive components to seals and gaskets.

ASTM: Setting the Standards for Rubber Hardness Testing

The American Society for Testing and Materials (ASTM) is a globally recognized organization that develops and publishes technical standards. For rubber hardness testing, ASTM provides the necessary guidelines to ensure accuracy and consistency. The primary standards for rubber hardness testing are ASTM D2240 for Shore hardness and ASTM D1415 for IRHD hardness.

Why is Rubber Hardness Testing Important?

1. Quality Assurance: Rubber hardness testing ensures that materials meet specified criteria, maintaining consistent product quality.
2. Predicting Performance: These tests help anticipate how rubber materials will perform under different conditions, aiding in design and application.
3. Informed Material Selection: Hardness data guide engineers and designers in selecting the right materials for specific applications, balancing hardness with other required properties.
4. Regulatory Compliance: Standardized testing ensures that products comply with industry regulations and customer specifications.



Shore vs. IRHD Methods:

Shore Hardness Testing Explained

Shore hardness testing is widely used for measuring the hardness of rubber and plastics. It involves pressing an indenter into the material and measuring the depth of the indentation. There are two main Shore scales: Shore A for softer materials and Shore D for harder materials.

• Shore A: Utilizes a truncated cone indenter with a rounded tip for softer rubbers.
• Shore D: Uses a sharp conical indenter for harder rubbers and plastics.

The hardness value, ranging from 0 to 100, is displayed on a dial, with higher values indicating harder materials.

IRHD Hardness Testing Explained

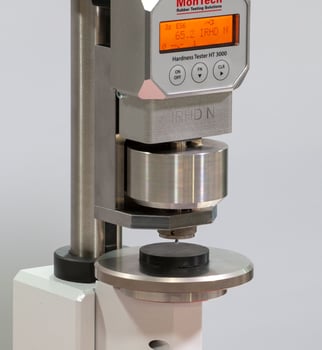

The IRHD method, as defined by ASTM D1415, measures rubber's resistance to indentation using a rounded ball indenter. The IRHD scale also ranges from 0 to 100 but employs a different testing procedure and equipment.

• Micro IRHD: Ideal for small samples and thin materials.
• Normal IRHD: Suitable for general rubber hardness testing.

IRHD tests provide hardness measurements that are less affected by the viscoelastic properties of rubber, offering potentially more consistent results for specific materials compared to the Shore method.

Choose your testing method carefully!

Rubber hardness testing is vital for ensuring the quality, performance, and regulatory compliance of rubber products. The ASTM standards play a crucial role in maintaining consistency and reliability in these tests. Understanding the differences between Shore and IRHD methods allows for more accurate and informed testing, ultimately leading to better material selection and product performance. Whether using Shore A for softer rubbers or IRHD for precise measurements, these tests are indispensable tools in the development and application of rubber materials.

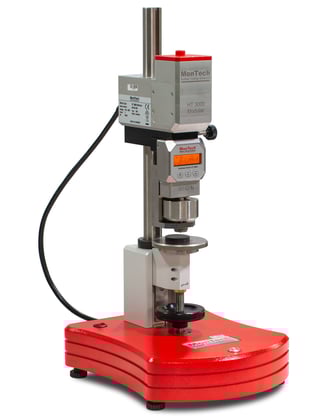

Learn more about MonTech's HT 3000 Rubber Hardness Testers Here!
